Description

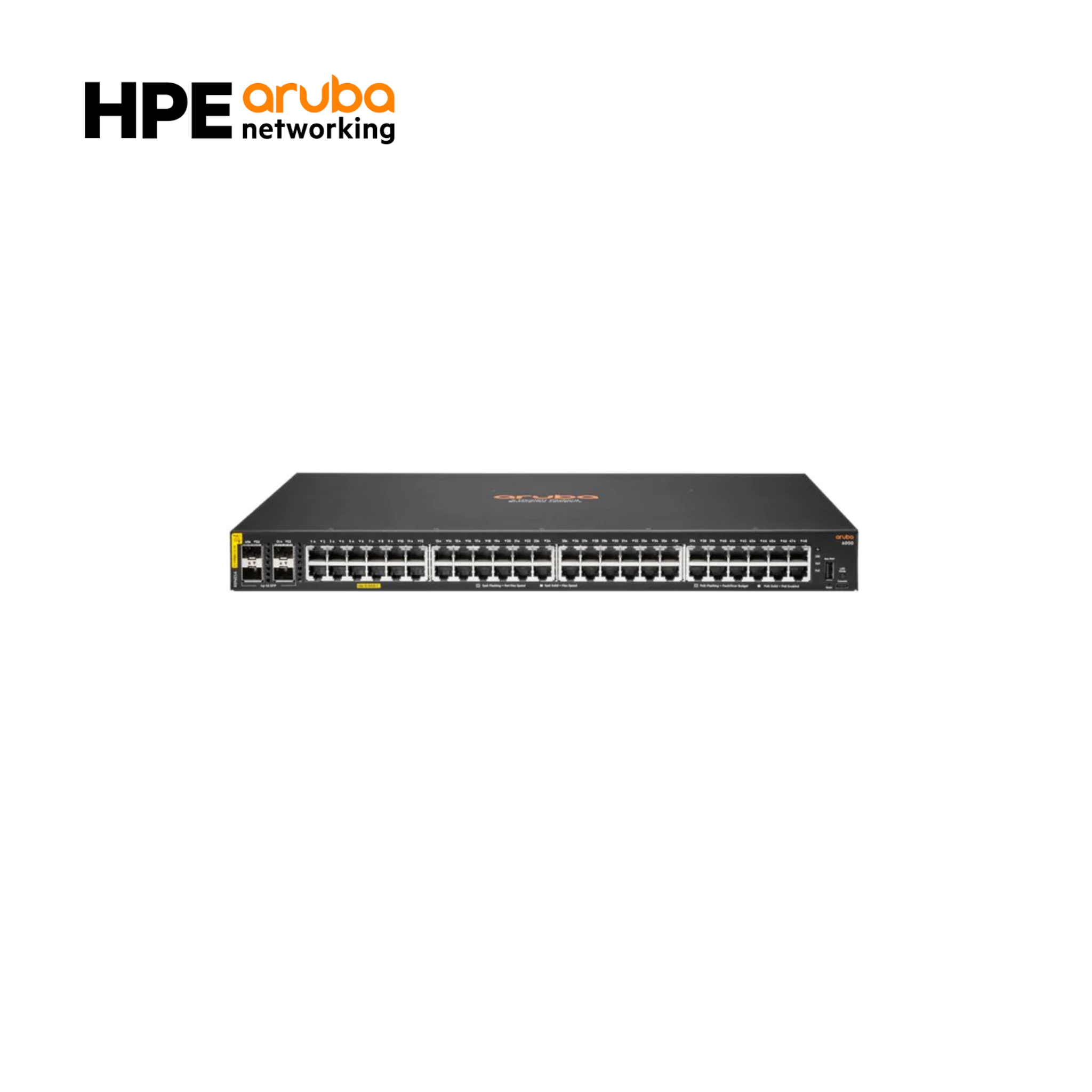

Aruba CX 6000 48-Port PoE+ Switch (R8N85A) Overview
The Aruba CX 6000 R8N85A is a fully managed Layer 2 Ethernet switch designed for reliable and simple access in branch offices, midsize businesses, and small enterprises. It features 48x 10/100/1000Base-T PoE+ ports with a total PoE budget of 370W, supporting devices like IP phones, wireless access points, and security cameras. Additionally, it includes 4x SFP uplink ports for high-speed connectivity.
Built on Aruba’s ASIC architecture and AOS-CX operating system, the R8N85A provides a consistent operator experience, robust security, and intelligent automation. Its compact design ensures efficient operation, making it ideal for deployments in various environments.
Technical Specifications
| Feature | Details |
|---|---|
| Model Number | R8N85A |
| Form Factor | 1U Rackmount |
| Ports | 48x 10/100/1000Base-T PoE+ (up to 30W per port) |
| Uplink Ports | 4x SFP (1GbE) |
| PoE Budget | 370W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.3 Mpps |
| Latency | < 3 µs |
| Memory | 512 MB SDRAM |
| Storage | 256 MB flash |
| Management Ports | 1x RJ-45 Console, 1x USB Type-A Host |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 15% to 95% non-condensing |
| Power Supply | Internal fixed power supply |
| Airflow Direction | Side-to-side |
| Mounting | Rack-mountable |
| Warranty | Limited Lifetime Warranty |
