Description

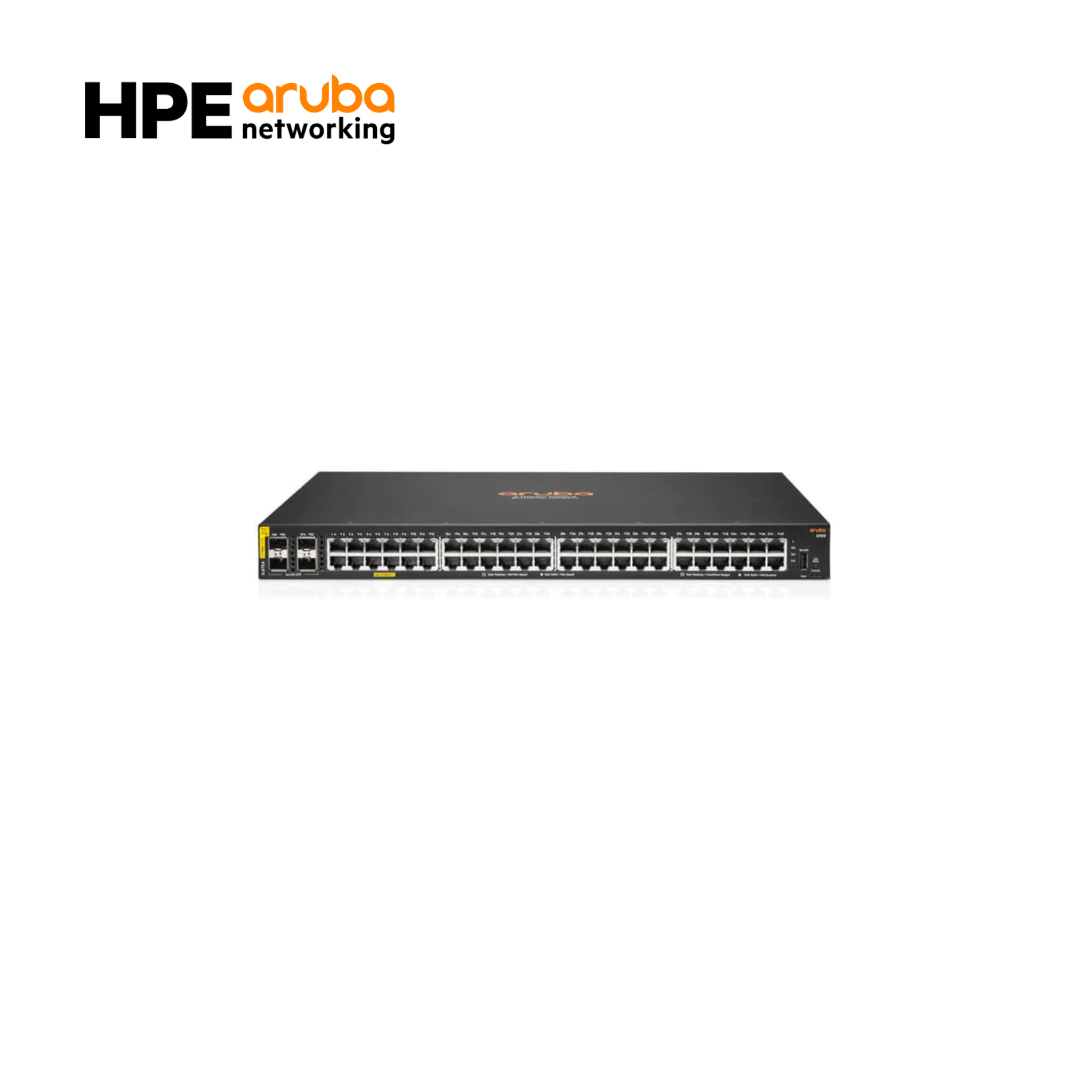

Aruba CX 6100 48-Port PoE+ Switch (JL675A) Overview
The Aruba CX 6100 JL675A is a high-performance, Layer 2 managed switch designed for enterprise access, aggregation, and top-of-rack deployments. It features 48x 10/100/1000Base-T PoE+ ports supporting up to 30W per port, ideal for powering devices like advanced security cameras, wireless access points, and VoIP phones. Additionally, it includes 4x SFP+ uplink ports for high-speed connectivity up to 10GbE.
Built on Aruba’s ASIC architecture and AOS-CX operating system, the JL675A provides a consistent operator experience, robust security, and intelligent automation. Its compact design ensures scalability and flexibility, making it ideal for deployments in various enterprise environments.
Technical Specifications
| Feature | Details |
|---|---|
| Model Number | JL675A |
| Form Factor | 1U Rackmount |
| Ports | 48x 10/100/1000Base-T PoE+ (up to 30W per port) |
| Uplink Ports | 4x SFP+ (1/10GbE) |
| PoE Budget | 370W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Latency | < 3 µs |
| Memory | 4 GB SDRAM |
| Storage | 4 GB flash |
| Management Ports | 1x USB-C Console, 1x USB Type-A Host |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 15% to 95% non-condensing |
| Power Supply | Internal fixed power supply |
| Airflow Direction | Side-to-side |
| Mounting | Rack-mountable |
| Warranty | 1 year Warranty |
