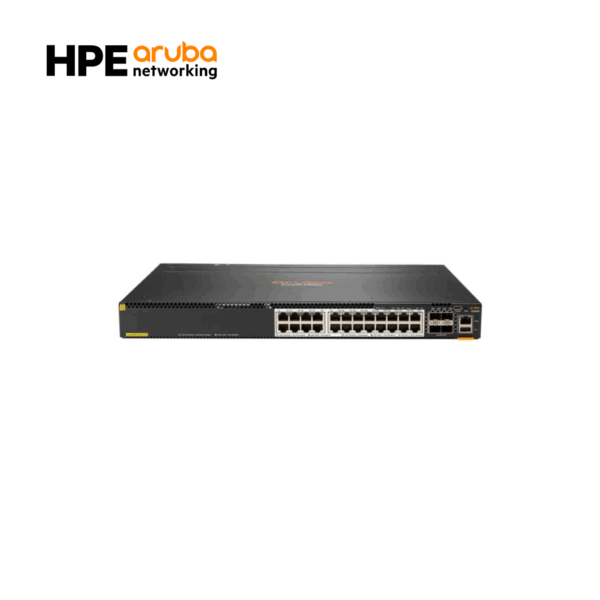

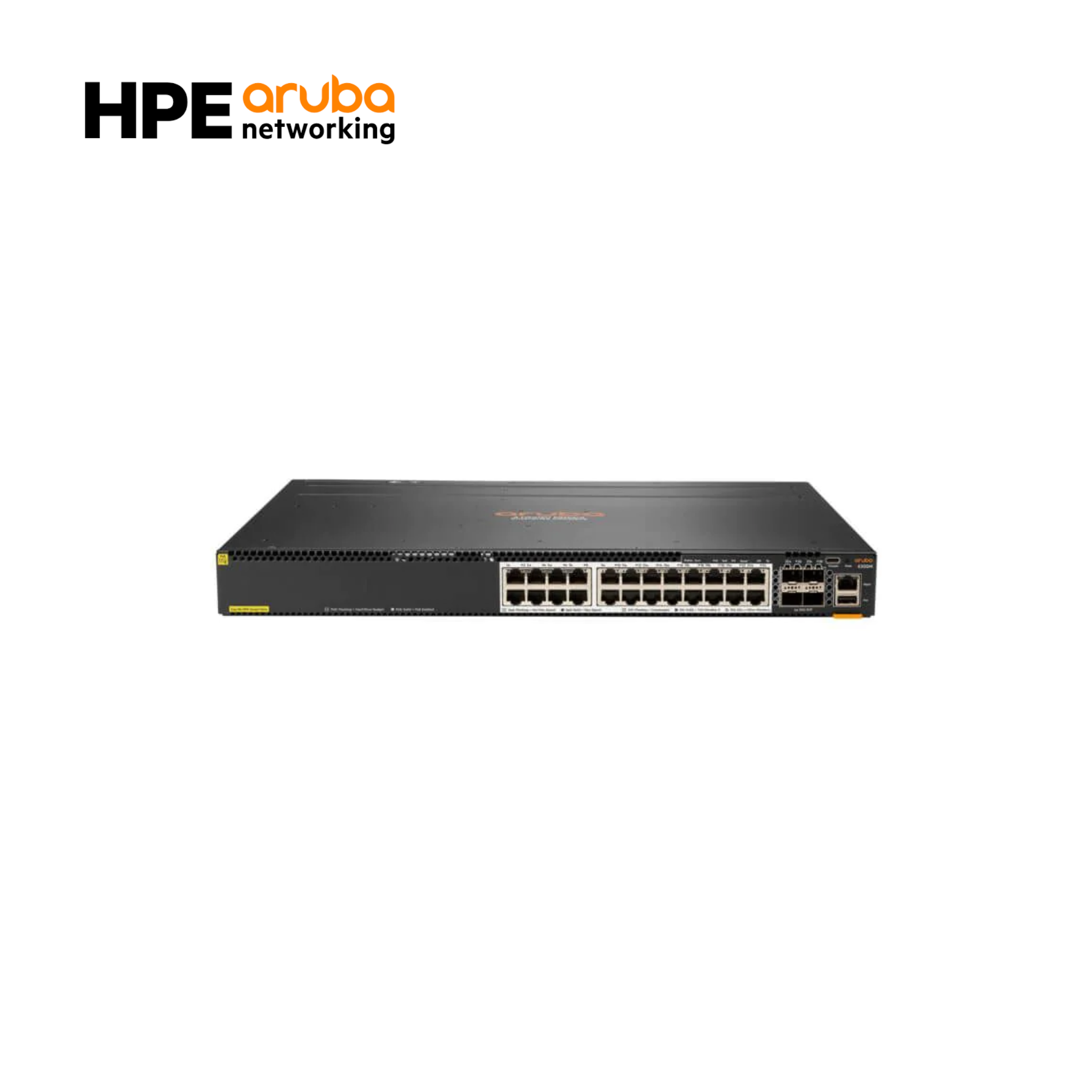

Aruba CX 6300M 24-Port Smart Rate PoE++ Switch (JL660A) Overview
The Aruba CX 6300M JL660A is a high-performance, modular Layer 3 switch designed for enterprise access, aggregation, and top-of-rack deployments. It features 24x Smart Rate 100M/1G/2.5G/5G Base-T PoE++ ports supporting up to 60W per port, ideal for powering devices like advanced security cameras, wireless access points, and VoIP phones. Additionally, it includes 4x SFP56 uplink ports for high-speed connectivity up to 50GbE.
Built on Aruba’s ASIC architecture and AOS-CX operating system, the JL660A provides a consistent operator experience, robust security, and intelligent automation. Its modular design ensures scalability and flexibility, making it ideal for deployments in various enterprise environments.
Technical Specifications
| Feature | Details |
|---|---|
| Model Number | JL660A |
| Form Factor | 1U Rackmount |
| Ports | 24x Smart Rate 100M/1G/2.5G/5G Base-T PoE++ (up to 60W per port) |
| Uplink Ports | 4x SFP56 (1/10/25/50GbE) |
| PoE Budget | Up to 1,440W (with appropriate power supplies) |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 476 Mpps |
| Latency | 1 Gbps: 4.24 µs; 10 Gbps: 1.5 µs; 25 Gbps: 2.91 µs; 50 Gbps: 3.49 µs |
| Memory | 8 GB SDRAM |
| Storage | 32 GB flash |
| Management Ports | 1x USB-C Console, 1x USB Type-A Host, 1x OOBM port |
| Stacking Capability | Up to 10 switches via Virtual Switching Framework (VSF) |
| Power Supply | Supports up to 2 power supplies (ordered separately) |
| Airflow Direction | Front-to-back or back-to-front (depending on fan tray configuration) |
| Mounting | Rack-mountable |
| Warranty | Limited Lifetime Warranty |
