Description

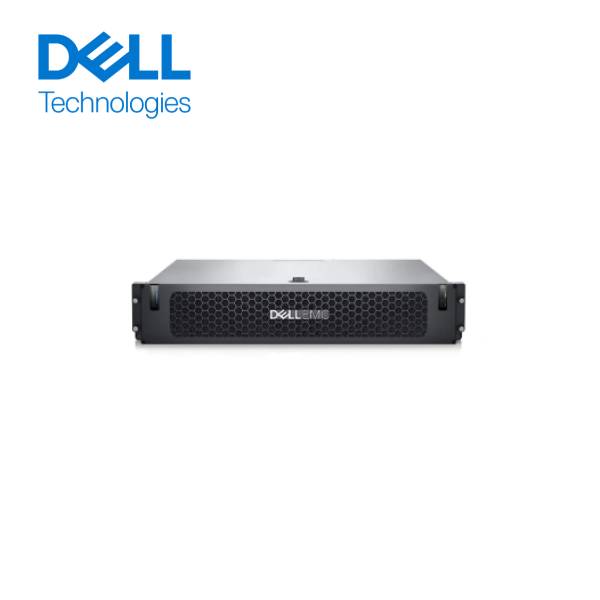

Dell PowerEdge XR12 Server – Rugged 2U Edge Server for Extreme Environments
The Dell PowerEdge XR12 is a 2U short-depth ruggedized edge server designed to operate reliably in extreme and space-constrained environments. With MIL-STD and NEBS Level 3 compliance, the XR12 is built to withstand shock, dust, and temperature extremes—making it ideal for telco, defense, retail edge, and manufacturing use cases.
Powered by a single 3rd Gen Intel Xeon Scalable processor, the XR12 supports up to 512GB of DDR4 memory, PCIe Gen4 expansion, and NVMe storage. It delivers powerful compute capabilities with enterprise-class manageability and built-in security for mission-critical edge deployments.
Dell PowerEdge XR12 Server Specifications:
| Component | Specification |
|---|---|
| Form Factor | 2U short-depth rugged edge server |
| Processor | 1x 3rd Gen Intel Xeon Scalable processor (Ice Lake) |
| Memory | Up to 512GB DDR4 ECC RDIMM (16 DIMM slots, up to 3200 MT/s) |
| Storage | Up to 6 x 2.5″ SAS/SATA/NVMe hot-swappable drives |
| RAID Support | PERC H755, software RAID options |
| Expansion Slots | 2 x PCIe Gen4 slots |
| Networking | 2 x 1GbE onboard; OCP 3.0 slot for 10/25GbE NICs |
| Power Supply | Redundant hot-plug 800W/1100W PSU |
| Management | iDRAC9, Redfish, OpenManage Enterprise |
| Environmental Specs | NEBS Level 3, MIL-STD-810G, operating temp -5°C to 55°C |
| Dimensions (HxWxD) | 86.8 mm x 434 mm x 406 mm |
| Certifications | CE, FCC, UL, RoHS, MIL-STD, NEBS |
