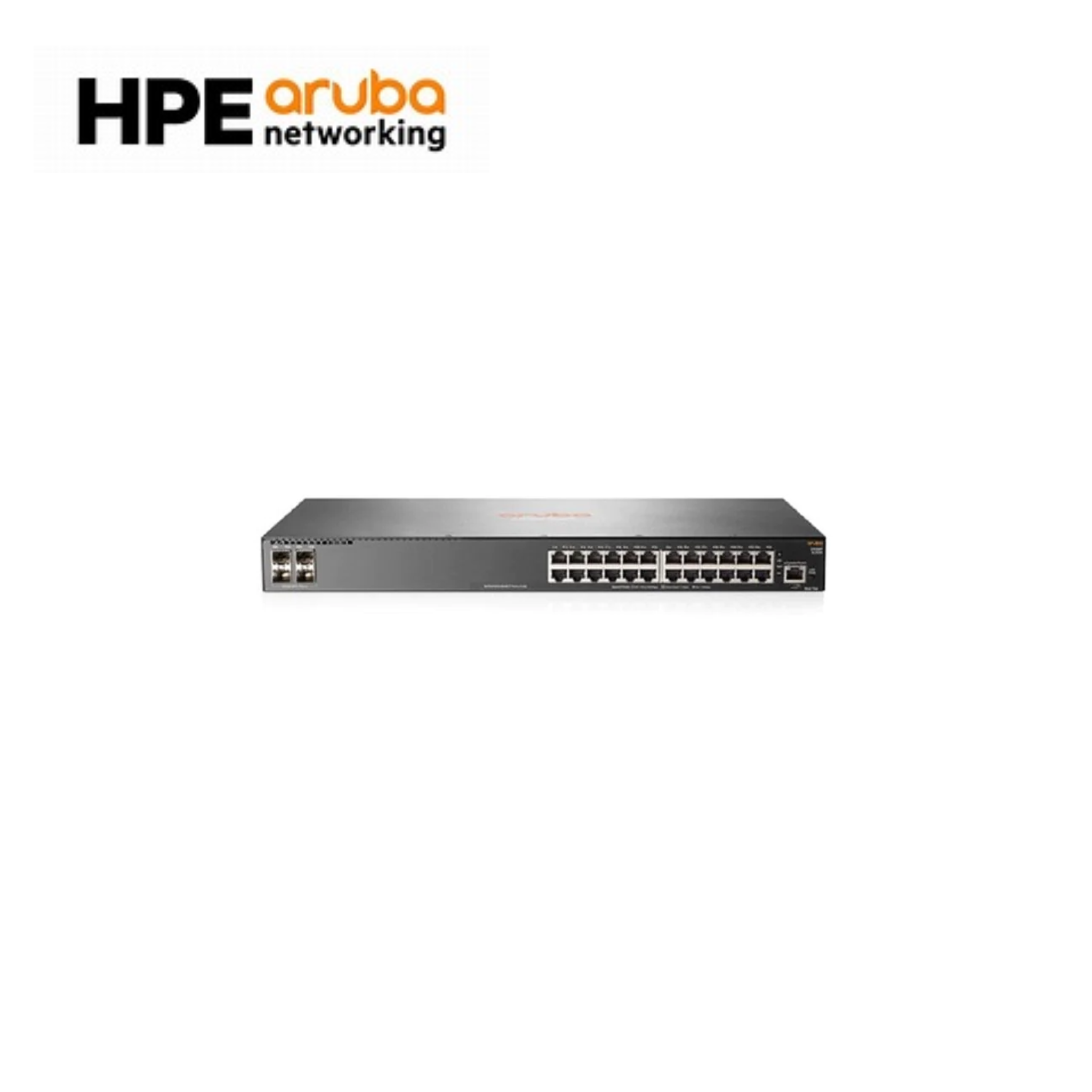

Aruba 2540 24G 4SFP+ Switch (JL354A) Overview
The Aruba 2540 24G 4SFP+ Switch (JL354A) is a high-performance Layer 2 access switch designed for enterprise edge, branch offices, and small to medium-sized businesses (SMBs). Optimized for the digital workplace, it delivers reliable, secure, and simple Ethernet access with advanced security and network management tools.Newegg.com+4Router Switch+4Newegg.com+4
Key features include:
-
24 RJ-45 autosensing 10/100/1000 ports for flexible connectivity.
-
4 SFP+ 1/10GbE ports for high-speed uplinks.
-
Cloud-based management via Aruba Central for simplified deployment and management.
-
Advanced security features, including ACLs and traffic prioritization.
-
Energy-efficient design with side-to-side airflow and low power consumption.HPE Support+5batna24.com+5Secure Wireless Works+5Newegg.com+2Secure Wireless Works+2acumentech.co.za+2Secure Wireless Works+2Router Switch+2Newegg.com+2
The JL354A switch provides a cost-effective solution for organizations seeking to enhance their network performance and security while simplifying management through cloud-based tools.
Aruba 2540 24G 4SFP+ Switch (JL354A) Specifications
| Component | Specification |
|---|---|
| Model Number | JL354A |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 4.39 x 44.25 x 20.02 cm (1.73 x 17.42 x 7.88 in) |
| Weight | 2.41 kg (5.31 lb) |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM |
| Storage | 4 GB eMMC |
| Packet Buffer Size | 12.38 MB (4.5 MB Ingress / 7.875 MB Egress) |
| Ports | 24 x RJ-45 autosensing 10/100/1000 ports; 4 x SFP+ 1/10GbE ports |
| Console Port | 1 x dual-personality (RJ-45 or USB micro-B) serial console port |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | < 3.8 µs (64-byte packets) |
| Airflow Direction | Side-to-side |
| Power Supply | Internal AC power supply |
| Power Consumption | Idle: 21.5 W; Maximum: 32.5 W |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 15% to 95% non-condensing |
| Safety Certifications | UL 60950-1, EN 60950-1, IEC 60950-1, CSA 22.2 No. 60950-1-07 |
| Management | Aruba Central, Aruba AirWave, Web GUI, CLI, SNMP |
| Warranty | Limited Lifetime Warranty |
