Description

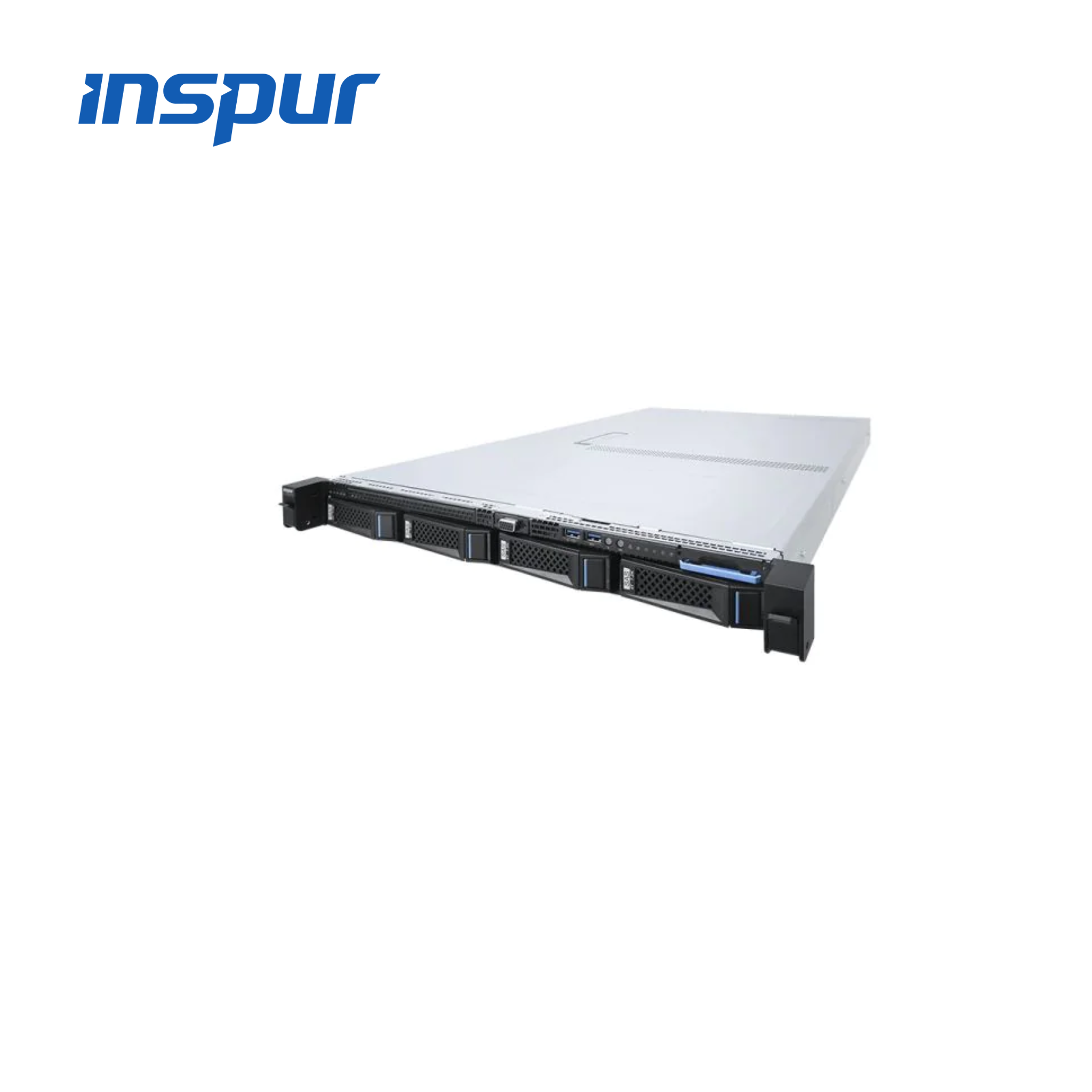

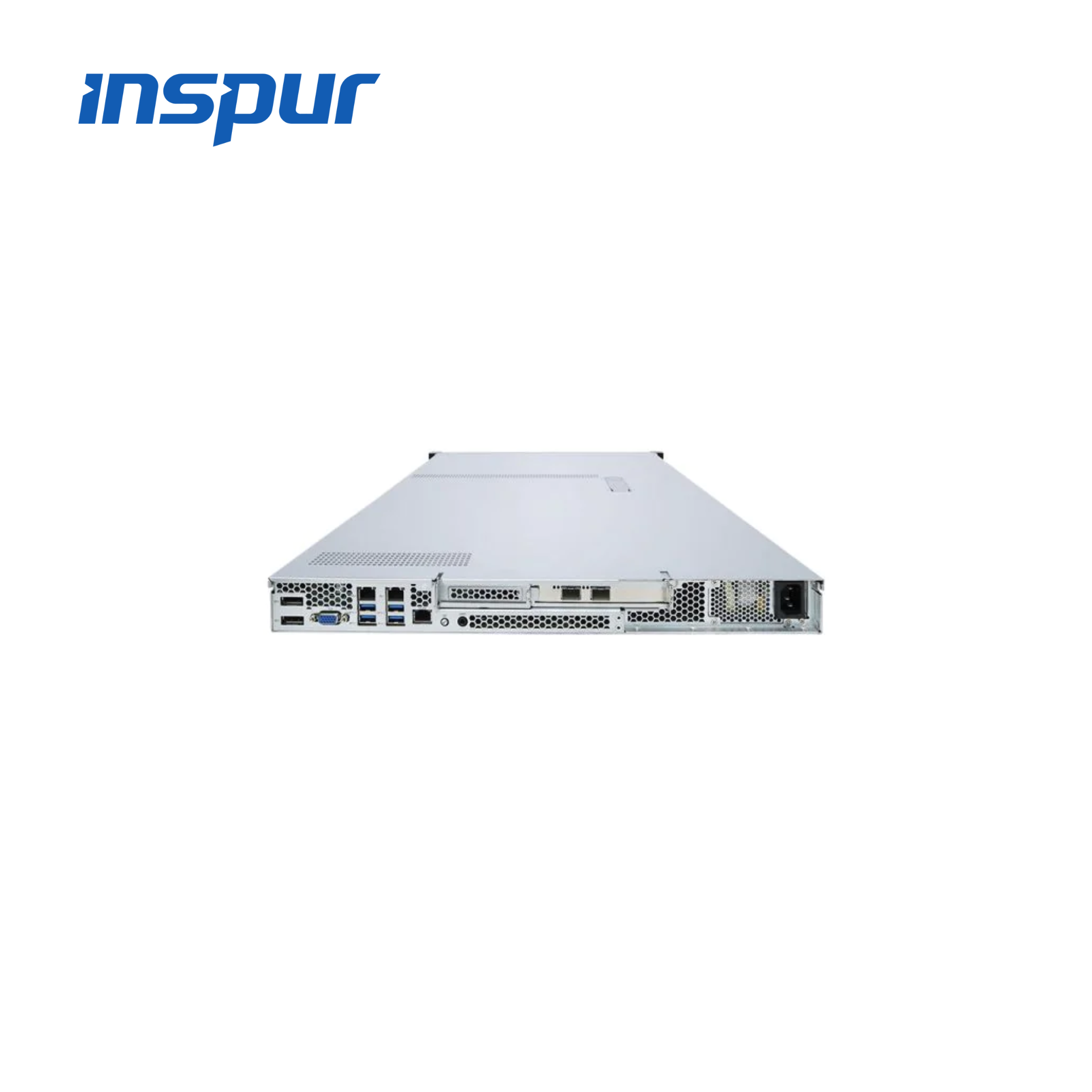

Inspur NF3120M5 Server Overview
The Inspur NF3120M5 is a high-efficiency 1U rackmount server engineered to deliver strong performance in a compact design. Tailored for cloud computing, data center deployment, and enterprise applications, the NF3120M5 is powered by Intel® Xeon® Scalable processors and supports advanced memory configurations, flexible I/O, and reliable expansion capabilities. Whether you’re building a high-density compute environment or a virtualized infrastructure, this server delivers balanced performance with space-saving benefits.
Key Features
-
Optimized 1U form factor for dense data center deployments
-
Dual Intel® Xeon® Scalable processors support
-
Scalable memory capacity with up to 16 DDR4 DIMMs
-
Multiple I/O and expansion slots for flexible connectivity
-
Tool-less design for easy maintenance and upgrades
Inspur NF3120M5 Specifications
| Component | Specification |
|---|---|
| Form Factor | 1U Rackmount |
| Processor | Dual Intel® Xeon® Scalable Processors (1st/2nd Gen) |
| Chipset | Intel® C622 Series |
| Memory | Up to 1TB DDR4, 16 DIMM slots, 2933MHz ECC Registered Memory |
| Storage | Supports up to 10x 2.5″ SAS/SATA/NVMe or 4x 3.5″ drives |
| RAID Support | Onboard SATA RAID 0/1/10 (Optional RAID card for 5/50/6/60) |
| Expansion Slots | Up to 3 PCIe 3.0 slots |
| Network Interface | 2x 1GbE ports (Optional: 10GbE/25GbE add-on cards) |
| Management | IPMI 2.0 with iKVM, Redfish compliant |
| Power Supply | Redundant 550W or 750W Platinum-level PSUs |
| Dimensions | 438mm x 43.5mm x 715mm (W x H x D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certification | CE, FCC, UL, RoHS, CCC |
