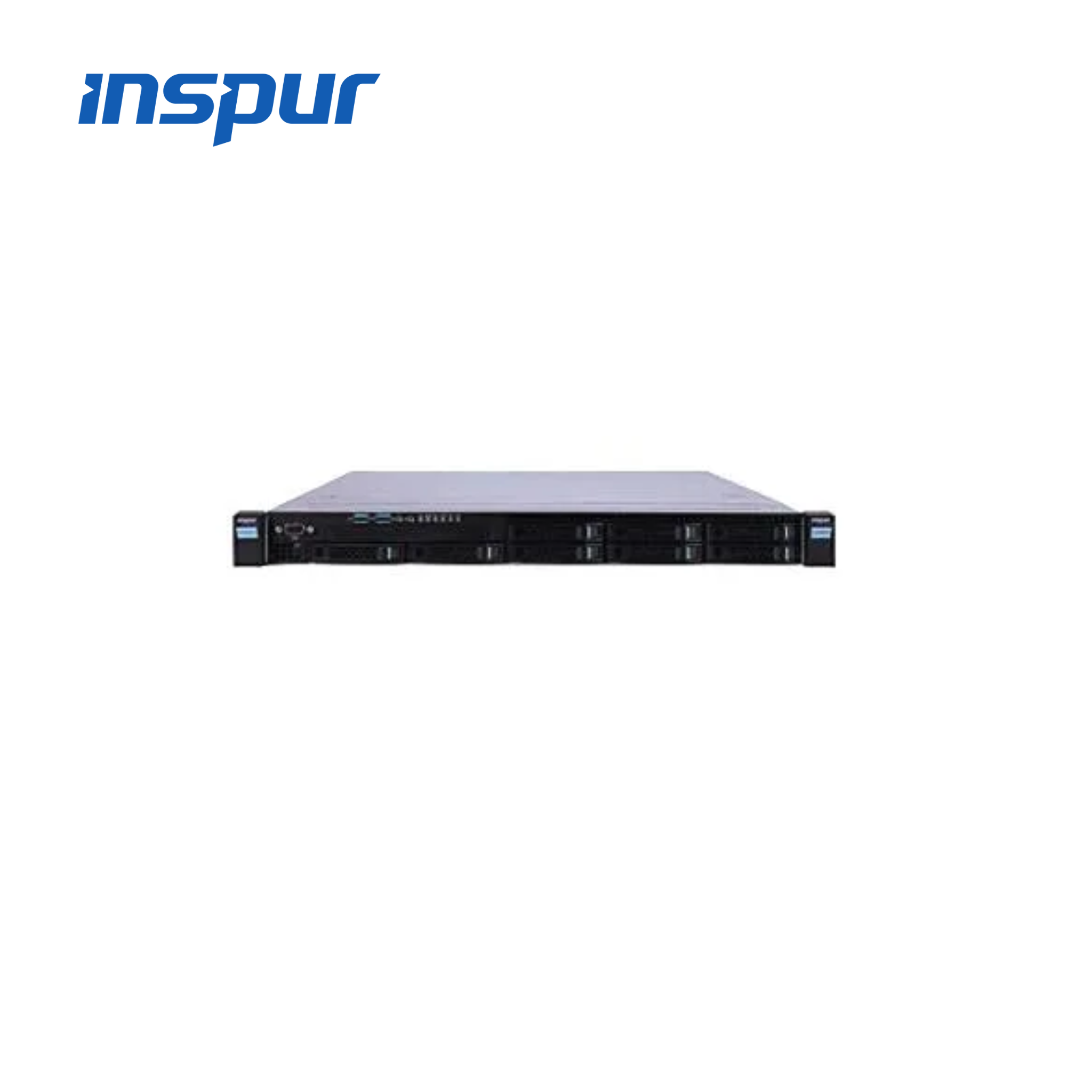

Inspur NF5170M4 Server Overview
The Inspur NF5170M4 is a high-density, 1U dual-socket rack server built to support cloud computing, hyperscale deployments, and enterprise virtualization. Powered by dual Intel® Xeon® E5-2600 v4/v3 processors, this server offers a balance of performance, energy efficiency, and space optimization. With support for up to 1.5TB of DDR4 memory and scalable I/O options, the NF5170M4 is ideal for businesses looking to maximize compute density without sacrificing reliability or management capabilities.
Key Features
-
Dual-socket support for Intel® Xeon® E5-2600 v4/v3 CPUs
-
1U form factor for high compute density
-
Up to 1.5TB DDR4 memory across 24 DIMMs
-
Designed for cloud computing, HPC, and virtualization workloads
-
Inspur SmartManage and IPMI for efficient system monitoring
Inspur NF5170M4 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 1U Rackmount |
| Processor | Up to 2x Intel® Xeon® E5-2600 v4/v3 Series CPUs |
| Chipset | Intel® C612 Series |
| Memory | Up to 1.5TB DDR4, 24x DIMMs, ECC Registered, up to 2400MHz |
| Storage | Up to 10x 2.5″ SAS/SATA (optional NVMe) drives (hot-swappable) |
| RAID Support | Integrated SATA RAID 0/1/10; optional RAID 5/6 via add-on controller |
| Expansion Slots | 2x PCIe 3.0 + 1x OCP slot for network expansion |
| Network Interface | Onboard dual 1GbE; supports OCP/PCIe 10GbE/25GbE |
| Management | IPMI 2.0, Redfish, iKVM, Inspur SmartManage |
| Power Supply | Redundant 550W/750W Platinum Efficiency PSUs |
| Dimensions | 430mm (W) × 43.5mm (H) × 750mm (D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, CCC, RoHS, UL |
