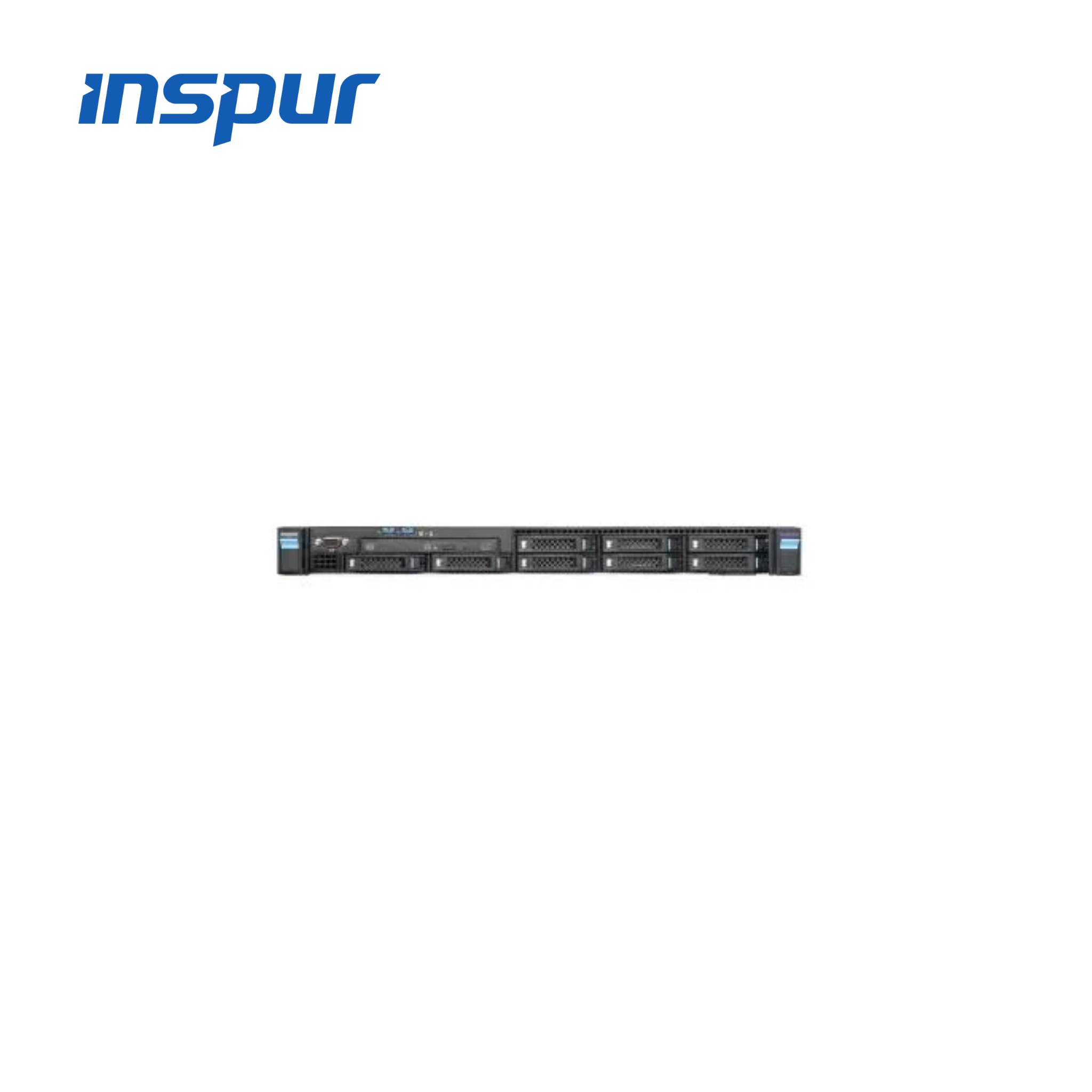

Inspur NF5180M4 Server Overview
The Inspur NF5180M4 is a 1U dual-socket rack server designed for modern data centers demanding high performance, energy efficiency, and scalability in a compact footprint. Featuring support for dual Intel® Xeon® E5-2600 v4/v3 processors, the NF5180M4 delivers excellent compute density while maintaining flexibility in storage and I/O expansion. It’s a versatile solution ideal for cloud computing, enterprise workloads, and virtualized environments, offering strong reliability and intelligent management.
Key Features
-
Dual-socket support for Intel® Xeon® E5-2600 v4/v3 CPUs
-
Up to 1.5TB DDR4 memory across 24 DIMMs
-
Compact 1U form factor for high-density deployments
-
Flexible storage options including NVMe, SAS, and SATA
-
Ideal for cloud, virtualization, and data analytics workloads
Inspur NF5180M4 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 1U Rackmount |
| Processor | Up to 2x Intel® Xeon® E5-2600 v4/v3 Series CPUs |
| Chipset | Intel® C612 Series |
| Memory | Up to 1.5TB DDR4, 24x DIMMs, ECC Registered, up to 2400MHz |
| Storage | Supports up to 10x 2.5″ SAS/SATA or 4x NVMe SSDs (hot-swappable) |
| RAID Support | Integrated SATA RAID 0/1/10; optional advanced RAID via controller |
| Expansion Slots | 2x PCIe 3.0 slots + 1x OCP slot for networking |
| Network Interface | Onboard dual 1GbE; optional OCP/PCIe 10GbE/25GbE NICs |
| Management | IPMI 2.0, Redfish, iKVM, Inspur SmartManage |
| Power Supply | Redundant 550W/750W Platinum Efficiency PSUs |
| Dimensions | 430mm (W) × 43.5mm (H) × 750mm (D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, CCC, RoHS, UL |
