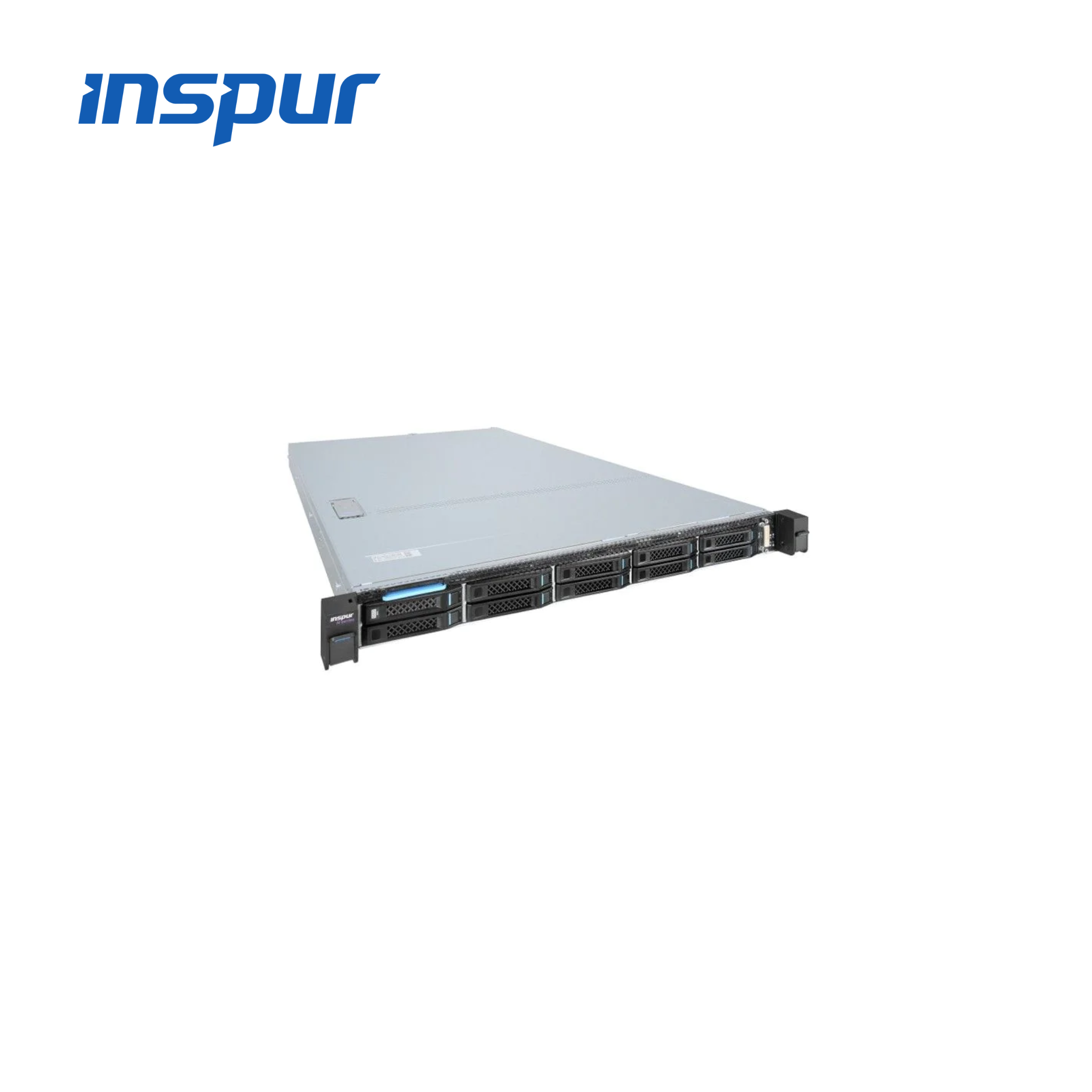

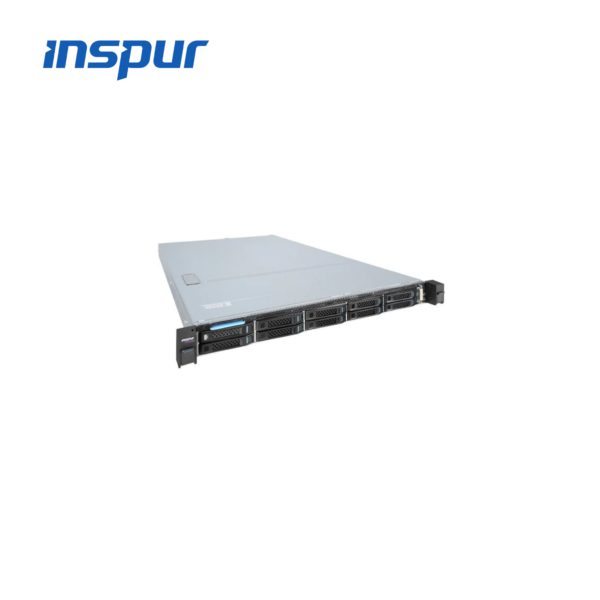

Inspur NF5180M5 Server Overview
The Inspur NF5180M5 is a high-density, 1U dual-socket server designed for enterprise workloads that demand exceptional performance within a compact footprint. With support for Intel® Xeon® Scalable processors, NVMe storage, and multiple I/O configurations, the NF5180M5 is built for cloud data centers, virtualization, and high-performance computing environments. This server provides a perfect blend of processing power, memory capacity, and thermal efficiency in a space-saving chassis.
Key Feature
-
Dual-socket performance in a dense 1U form factor
-
Supports large memory footprints with 24 DIMM slots
-
Hot-swappable NVMe and SATA/SAS drive options
-
Redundant, high-efficiency power supplies
-
Flexible I/O, including support for OCP and standard PCIe
Inspur NF5180M5 Server Specification
| Component | Specification |
|---|---|
| Form Factor | 1U Rackmount |
| Processor | Dual Intel® Xeon® Scalable Processors (1st/2nd Gen) |
| Chipset | Intel® C622 Series |
| Memory | Up to 3TB DDR4, 24 DIMM slots, up to 2933MHz ECC Registered Memory |
| Storage | Up to 10x 2.5″ drives (SATA/SAS/NVMe), or 4x 3.5″ drives (hot-swappable) |
| RAID Support | Onboard SATA RAID 0/1/10; Optional RAID card for levels 5/50/6/60 |
| Expansion Slots | 2x PCIe 3.0 + 1x OCP mezzanine slot (up to 100GbE NIC support) |
| Network Interface | 2x 1GbE (Optional 10/25/100GbE via OCP or PCIe NIC) |
| Management | IPMI 2.0 with iKVM, Redfish, Inspur SmartManage |
| Power Supply | Redundant 550W/750W/800W Platinum PSUs |
| Dimensions | 438mm x 43.5mm x 750mm (W x H x D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, UL, CCC, RoHS |
