Inspur NF8260M5 Server Overview

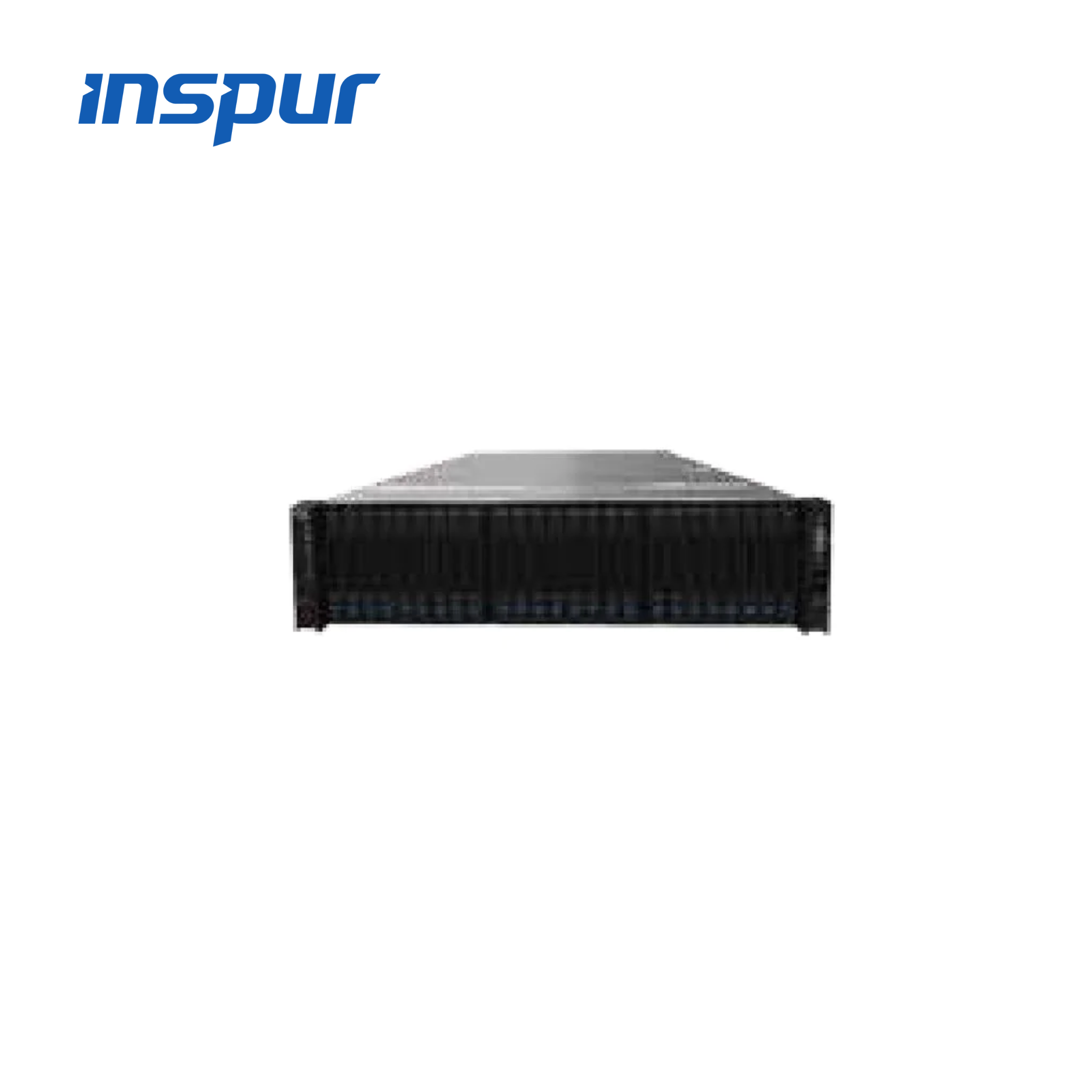

The Inspur NF8260M5 is a compact yet powerful 4-socket 2U server designed for mission-critical enterprise applications, virtualization, and data-intensive workloads. With support for up to four Intel® Xeon® Scalable processors (1st or 2nd Gen), it delivers high compute density in a space-efficient form factor. The system supports up to 6TB of DDR4 memory, extensive I/O options, and is ideal for medium-to-large scale data centers, private clouds, and enterprise back-end processing.
Key Features
-
Supports up to 4x Intel® Xeon® Scalable processors
-
Up to 6TB DDR4 ECC memory across 48 DIMM slots
-
Compact 2U form factor for rack efficiency
-
Redundant power and cooling for 24/7 mission-critical uptime
-
Optimized for ERP, virtualization, large database systems
Inspur NF8260M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 2U Rackmount |
| Processor | Up to 4x Intel® Xeon® Scalable (1st/2nd Gen) CPUs |
| Chipset | Intel® C628 Series |
| Memory | Up to 6TB DDR4 ECC RDIMM/LRDIMM, 48x DIMM slots, up to 2933MHz |
| Storage Options | Supports up to 24x 2.5″ or 12x 3.5″ SAS/SATA/NVMe drives |
| RAID Support | Integrated RAID 0/1/10; Optional RAID 5/6/50/60 via RAID controller |
| Expansion Slots | Up to 11x PCIe 3.0 slots + 1x OCP slot |
| Network Interface | Dual 1GbE onboard; optional 10/25/40/100GbE via PCIe/OCP |
| Management | IPMI 2.0, Redfish API, iKVM, Inspur SmartManage |
| Power Supply | Redundant 1600W/2000W Platinum efficiency PSUs |
| Cooling | Optimized air cooling for 4-CPU high-density environment |
| Dimensions | 448mm (W) × 86mm (H) × ~780mm (D) |
| Certifications | CE, FCC, UL, CCC, RoHS |
