Description

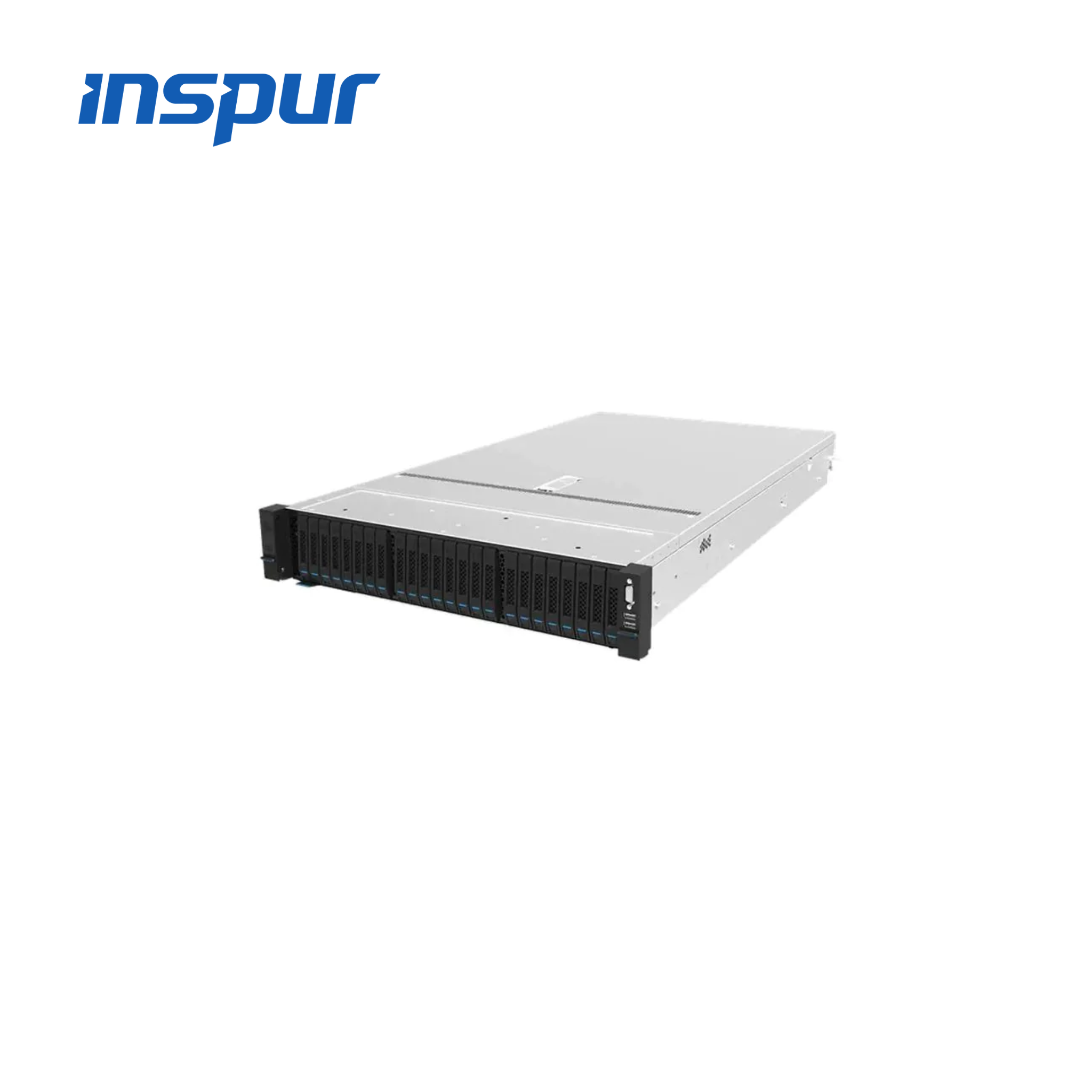

Inspur NF8260M6 Server Overview
The Inspur NF8260M6 is a powerful and highly scalable 2U rackmount server featuring up to 4x 3rd Gen Intel® Xeon® Scalable processors, making it ideal for large enterprise and data-intensive applications such as virtualization, in-memory databases, and AI workloads. With its compact design, flexible I/O, and massive memory and compute capability, the NF8260M6 delivers excellent performance in a space-efficient chassis, maximizing rack density without compromising on reliability.
Key Features
-
Supports 4x Intel® Xeon® Scalable processors (Ice Lake)
-
Up to 48 DIMM slots for high-speed DDR4 memory
-
Balanced performance in a dense 2U form factor
-
Supports advanced RAS features for mission-critical applications
-
Expandable I/O and storage for enterprise flexibility
Inspur NF8260M6 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 2U Rackmount |
| Processor | Up to 4x 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) |
| Chipset | Intel® C621A Series |
| Memory | Up to 12TB DDR4 (48x DIMM slots), ECC Registered, 3200MHz |
| Storage | Up to 24x 2.5″ SAS/SATA/NVMe (hot-swappable) |
| RAID Support | Optional RAID controller supporting RAID 0/1/5/10 |
| Expansion Slots | Up to 10x PCIe 4.0 slots (GPU, NICs, Storage) |
| GPU/Accelerator | Supports AI accelerators and FPGA (via select PCIe slots) |
| Network Interface | OCP 3.0 NIC + Optional PCIe NICs (10/25/40/100GbE) |
| Management | IPMI 2.0, Redfish, Inspur SmartManage |
| Power Supply | Redundant 1600W/2000W/2400W Platinum/Titanium PSUs |
| Dimensions | 448mm x 87mm x 800mm (W x H x D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, UL, CCC, RoHS |
