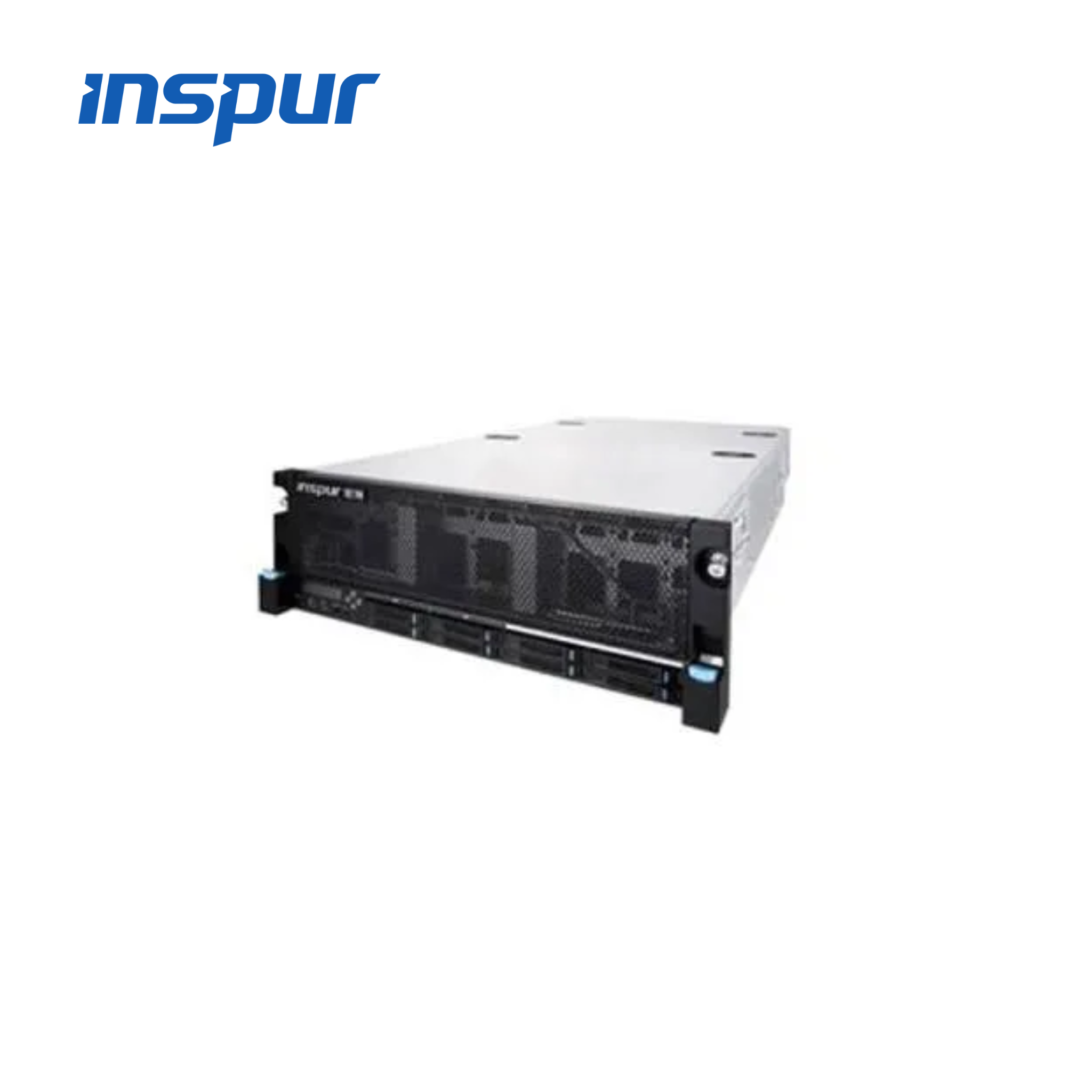

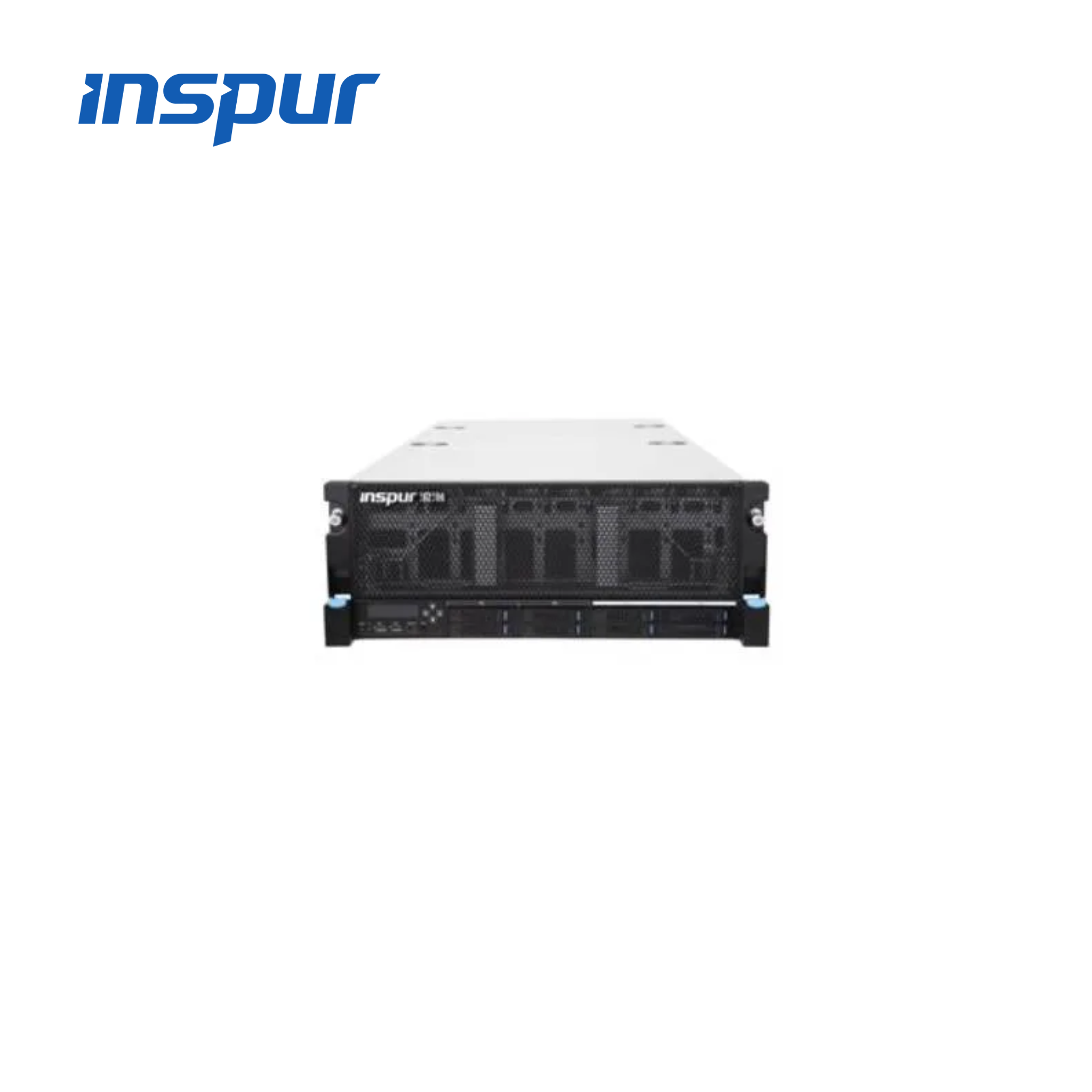

Inspur NF8480M4 Server Overview
The Inspur NF8480M4 is a powerful and scalable 8-socket enterprise server designed for large-scale, mission-critical applications. It supports up to 8x Intel® Xeon® E7-8800 v4/v3 series processors, enabling unparalleled processing capability, massive memory bandwidth, and robust system reliability. Its compact 4U form factor and rich I/O expandability make it ideal for demanding workloads like SAP HANA, core databases, ERP, and advanced virtualization.
Key Features
-
Supports up to 8x Intel® Xeon® E7 v4/v3 processors
-
Up to 96x DIMM slots for ultra-large memory capacity
-
Advanced RAS features ensure 24/7 reliability
-
High-density PCIe slots for flexible expansion
-
Enterprise-grade design for critical infrastructure workloads
Inspur NF8480M4 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Supports 4 to 8x Intel® Xeon® E7-8800 v4/v3 Series |
| Chipset | Intel® C602J Series |
| Memory | Up to 24TB DDR4, 96x DIMM slots, up to 1866MHz, ECC Registered |
| Storage | Up to 24x 2.5″ SAS/SATA/NVMe (hot-swappable bays) |
| RAID Support | RAID 0/1/5/10/50/60 via optional RAID controllers |
| Expansion Slots | Up to 18x PCIe 3.0 slots |
| GPU/Accelerator Support | Limited—optimized for compute and I/O rather than GPU use |
| Network Interface | Optional 1GbE/10GbE/25GbE NICs via PCIe cards |
| Management | IPMI 2.0, Redfish support, iKVM, Inspur SmartManage |
| Power Supply | Redundant 1600W/2000W Platinum/Titanium PSUs |
| Dimensions | 448mm (W) × 175mm (H) × 780mm (D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, CCC, RoHS, UL |
