Description

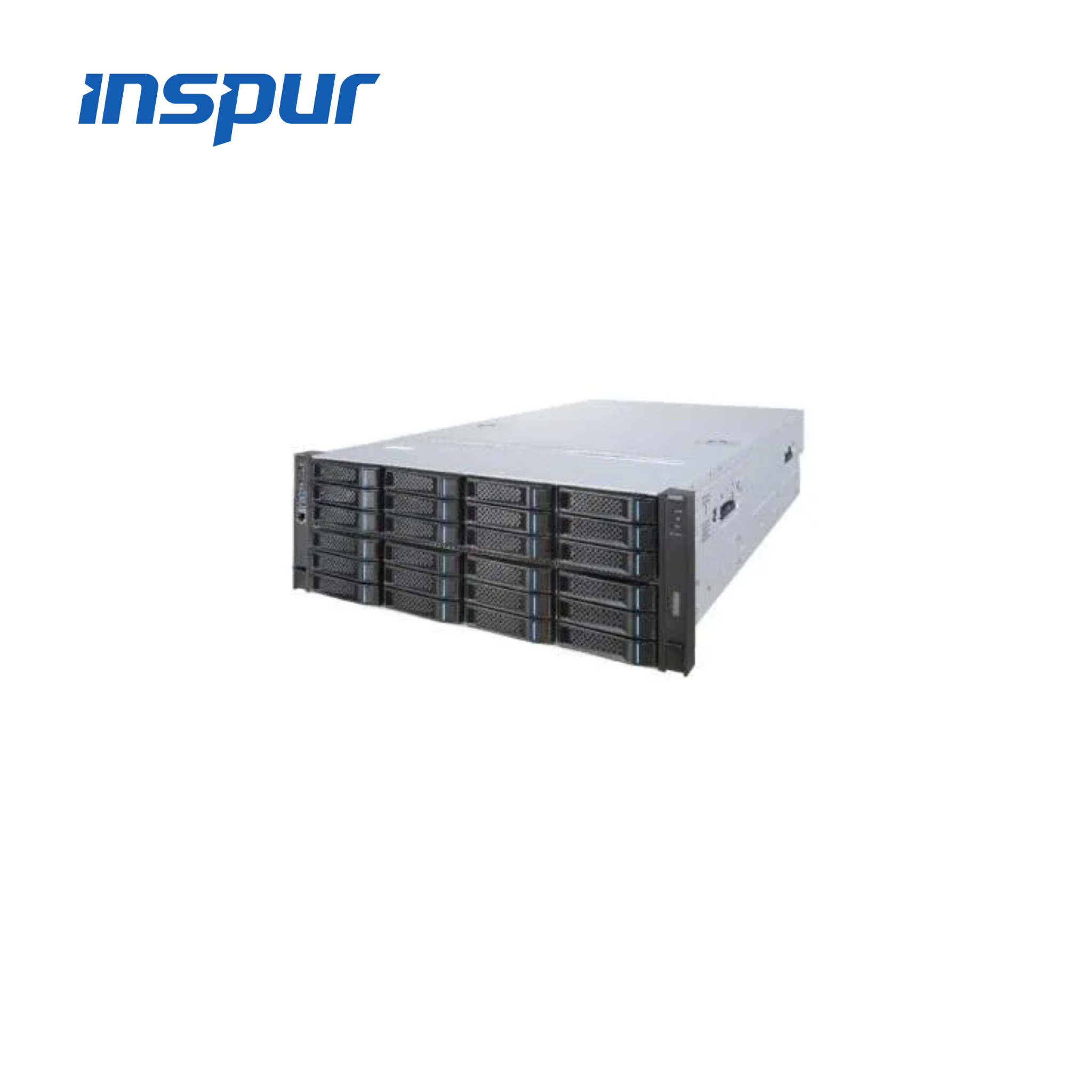

Inspur NF8480M5 Server Overview
The Inspur NF8480M5 is a high-performance, 8-socket 4U enterprise server designed to meet the needs of large-scale, mission-critical workloads. Built to support up to 8x Intel® Xeon® Scalable processors, the server delivers outstanding compute performance, memory bandwidth, and RAS capabilities. With enterprise-level redundancy, massive memory scalability, and extensive I/O flexibility, the NF8480M5 is ideal for core databases, virtualization, business analytics, and in-memory computing.
Key Features
-
Supports up to 8x Intel® Xeon® Scalable (1st & 2nd Gen) processors
-
Up to 96 DIMM slots supporting massive DDR4 memory capacity
-
Redundant components and RAS features ensure mission-critical uptime
-
Flexible storage and I/O configuration options
-
Ideal for SAP HANA, large-scale virtualization, and ERP environments
Inspur NF8480M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Supports 4 to 8x Intel® Xeon® Scalable (1st & 2nd Gen) |
| Chipset | Intel® C628 Series |
| Memory | Up to 24TB DDR4, 96x DIMM slots, ECC Registered, up to 2933MHz |
| Storage | Up to 25x 2.5″ hot-swappable SAS/SATA/NVMe drives |
| RAID Support | Integrated RAID 0/1/10; optional RAID 5/6/50/60 via controller |
| Expansion Slots | Up to 21x PCIe 3.0 slots |
| Network Interface | Optional 1GbE/10GbE/25GbE via OCP or PCIe NICs |
| Management | IPMI 2.0, Redfish, iKVM, Inspur SmartManage |
| Power Supply | Redundant 1600W/2000W/2400W Platinum/Titanium Efficiency |
| Dimensions | 448mm (W) × 175mm (H) × 780mm (D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, CCC, RoHS, UL |
