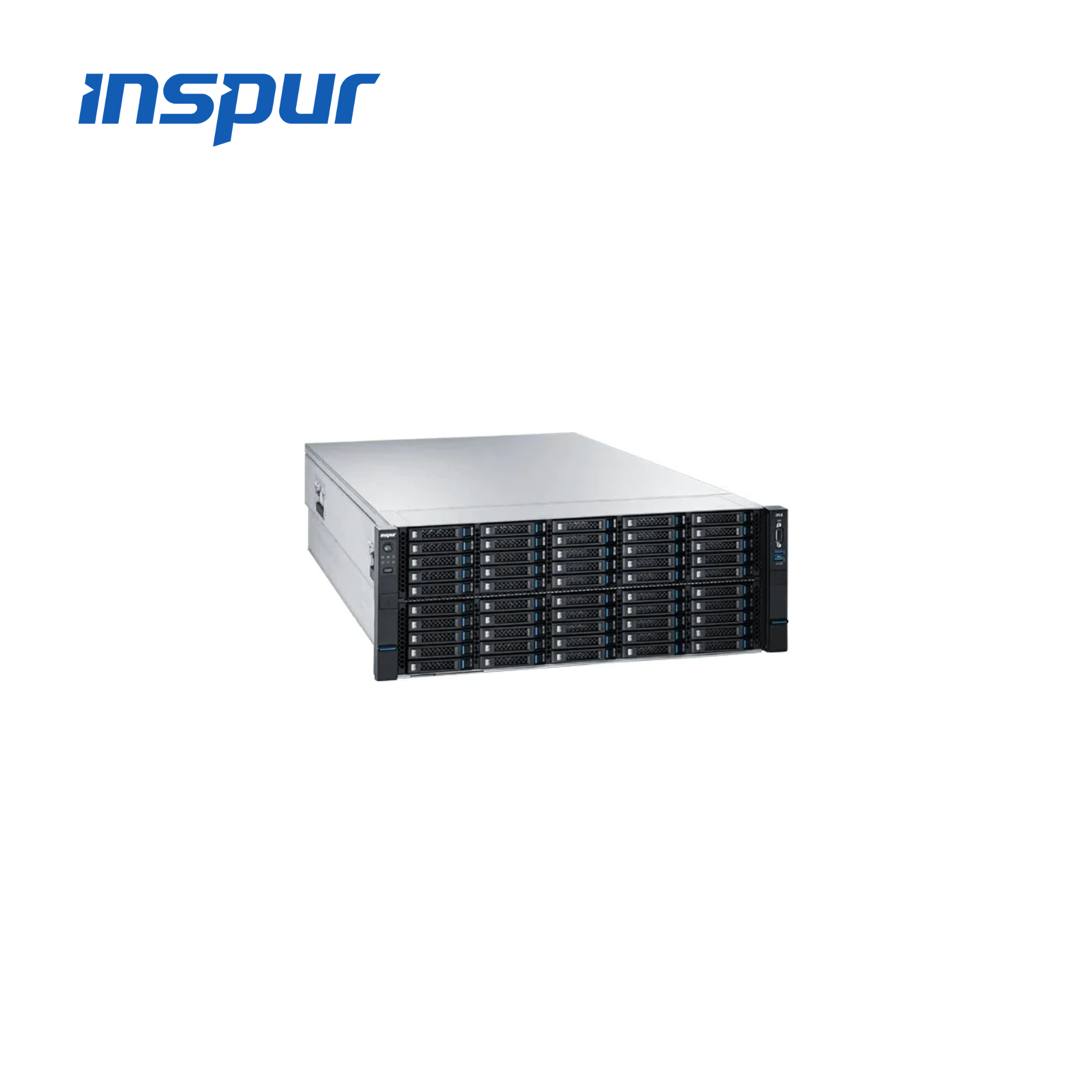

Inspur NF8480M6 Server Overview
The Inspur NF8480M6 is a flagship 4U server built to support the most demanding mission-critical enterprise workloads. Equipped with up to 8x 3rd Gen Intel® Xeon® Scalable processors, it offers massive compute power, memory bandwidth, and RAS (Reliability, Availability, Serviceability) features. Whether deployed for SAP HANA, core databases, in-memory computing, or virtualization, the NF8480M6 ensures ultra-reliable uptime and performance scalability in enterprise-grade environments.
Key Features
-
Supports up to 8x 3rd Gen Intel® Xeon® Scalable processors (Ice Lake)
-
64 DIMM slots supporting up to 16TB of DDR4 memory
-
Enterprise-grade RAS capabilities for continuous availability
-
High-speed PCIe 4.0 for faster data transfer and I/O expansion
-
Advanced system management and thermal design for 24/7 operations
Inspur NF8480M6 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Up to 8x 3rd Gen Intel® Xeon® Scalable (Ice Lake) |
| Chipset | Intel® C621A Series |
| Memory | Up to 16TB DDR4, 64x DIMMs, up to 3200MHz, ECC Registered |
| Storage | Up to 25x 2.5″ SAS/SATA/NVMe hot-swappable drives |
| RAID Support | RAID 0/1/5/10/50/60 (via optional RAID controller) |
| Expansion Slots | Up to 21x PCIe 4.0 slots (NICs, GPUs, accelerators, etc.) |
| GPU/FPGA Support | Supports AI accelerators, GPUs, and FPGAs via PCIe slots |
| Network Interface | OCP 3.0 NIC slot + PCIe slots for 10/25/100GbE NICs |
| Management | IPMI 2.0, Redfish, iKVM, Inspur SmartManage |
| Power Supply | Redundant 2000W/2400W Titanium Efficiency PSUs |
| Dimensions | 448mm (W) × 175mm (H) × 800mm (D) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Certifications | CE, FCC, UL, CCC, RoHS |
