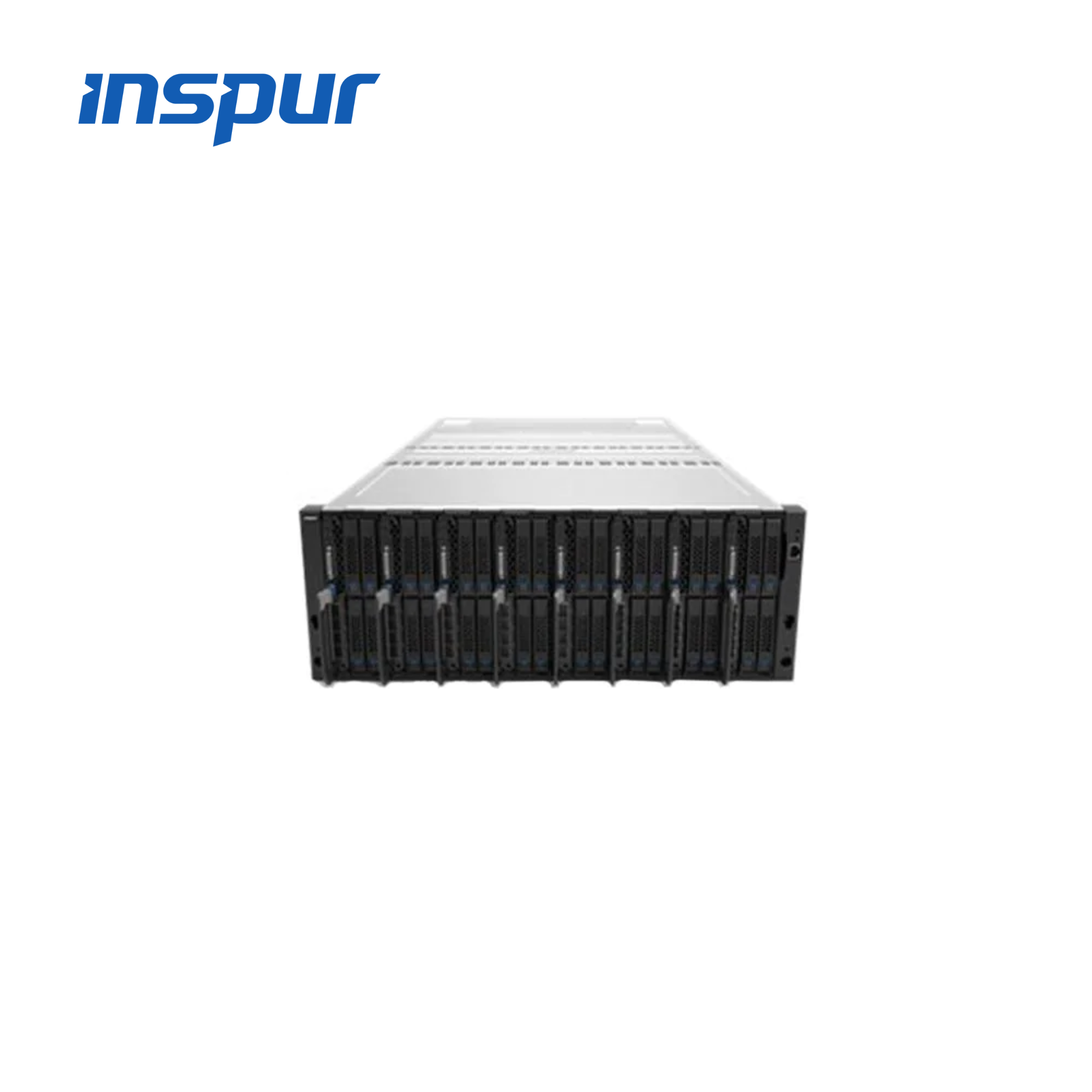

Inspur NS5482M5 Server Overview
The Inspur NS5482M5 is a 4U AI-optimized GPU server designed for deep learning, AI model training, and large-scale high-performance computing (HPC). It supports up to 16x NVIDIA® GPUs and is powered by dual Intel® Xeon® Scalable processors, delivering unmatched compute density and high-bandwidth GPU interconnects. With advanced airflow design, redundant components, and AI-tuned system architecture, the NS5482M5 is built for research labs, data centers, and enterprise AI deployments.
Key Features
-
Supports up to 16x single-width or 8x double-width GPUs
-
Dual Intel® Xeon® Scalable CPUs (1st or 2nd Gen)
-
PCIe 3.0/4.0 support with GPU peer-to-peer capabilities
-
Purpose-built for AI workloads such as training and large-scale inference
-
Advanced thermal management and power redundancy for 24/7 operation
Inspur NS5482M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount AI Server |
| Processor | 2x Intel® Xeon® Scalable (1st/2nd Gen) |
| Chipset | Intel® C621 Series |
| Memory | Up to 2TB DDR4 ECC RDIMM/LRDIMM, 16x DIMM slots, up to 2933MHz |
| GPU Support | Up to 16x single-slot GPUs or 8x dual-slot GPUs (NVIDIA Tesla, A100, etc.) |
| GPU Interconnect | PCIe 3.0 (NVLink not supported on this model) |
| Storage | Up to 8x 2.5″ hot-swappable SAS/SATA/NVMe drives |
| RAID Support | RAID 0/1/10 integrated; RAID 5/6 optional via add-on |
| Expansion Slots | Multiple PCIe 3.0 x16 slots for GPU and I/O |
| Network Interface | Dual 1GbE onboard; optional OCP or PCIe NICs for 10/25/100GbE |
| Power Supply | 3x Redundant 3000W Titanium PSUs |
| Cooling System | High-efficiency fan zones for optimized GPU thermal control |
| Management | IPMI 2.0, Redfish, KVM over IP, Inspur SmartManage |
| Dimensions | Approx. 448mm (W) × 176mm (H) × 900mm (D) |
| Certifications | CE, FCC, UL, CCC, RoHS |
