Description

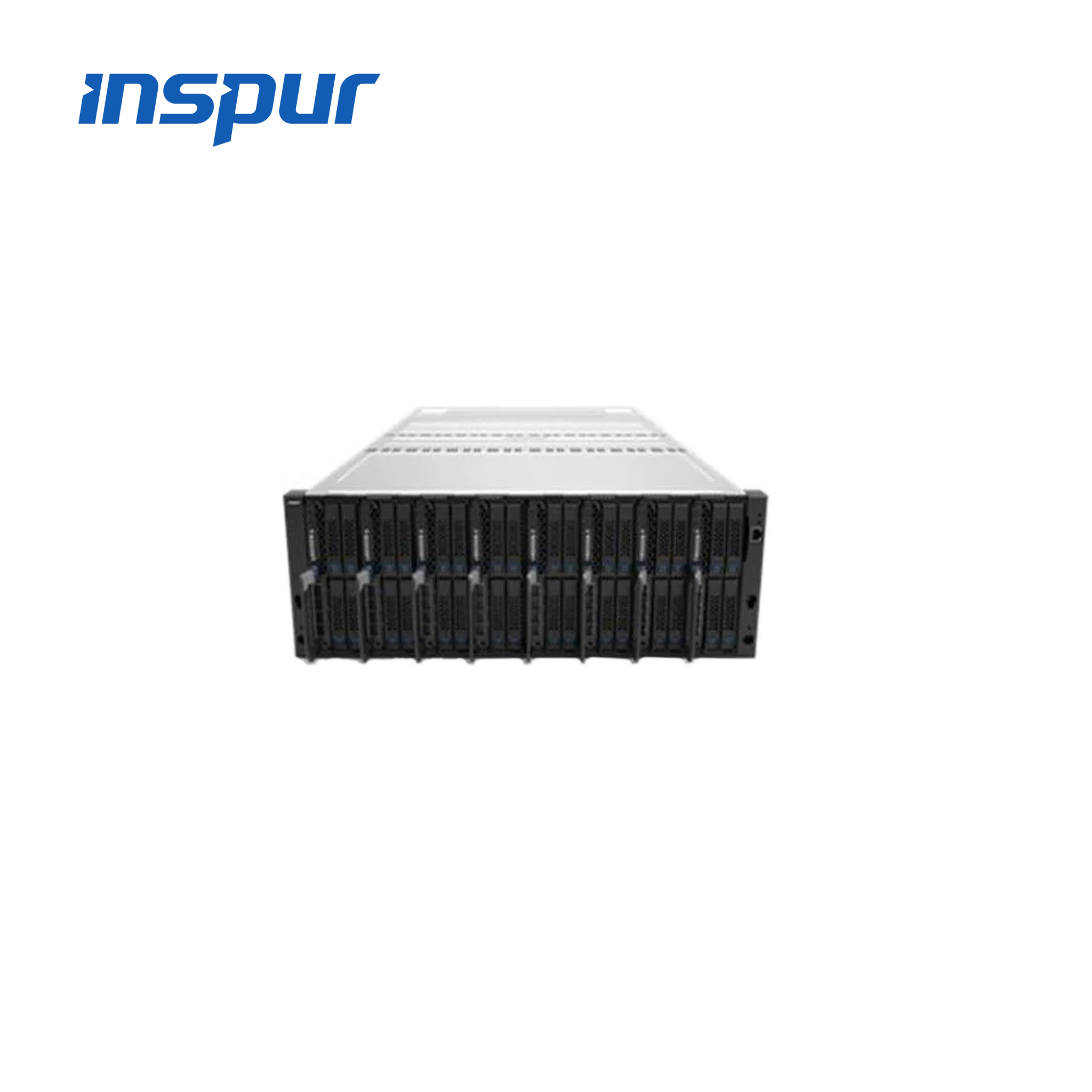

Inspur NS5484M5 Server Overview
The Inspur NS5484M5 is a 4U ultra-high-density AI server engineered for massive parallel computing, AI training, deep learning, and scientific simulations. Supporting up to 20x NVIDIA® Tesla or A100 GPUs, the server is powered by dual Intel® Xeon® Scalable processors (1st or 2nd Gen) and delivers exceptional compute performance for AI infrastructures and data-intensive applications.
Designed with multi-GPU communication via PCIe Gen3 and peer-to-peer interconnects, the NS5484M5 enables faster model convergence and seamless scalability in cloud-based or on-premise AI clusters.
Key Features
-
Up to 20x single-width GPUs (or configurable GPU types)
-
Dual Intel® Xeon® Scalable processors
-
High-bandwidth PCIe architecture for fast GPU data exchange
-
Optimized for AI training, deep learning, and high-performance workloads
-
Redundant power and thermal zones ensure stability in compute-heavy environments
Inspur NS5484M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Dual Intel® Xeon® Scalable (1st or 2nd Gen), up to 205W TDP |
| Chipset | Intel® C621 Series |
| Memory | Up to 2TB DDR4 ECC RDIMM/LRDIMM, 16 DIMM slots, up to 2933MHz |
| GPU Support | Up to 20x single-slot GPUs (e.g., NVIDIA Tesla T4, A2, etc.) |
| GPU Interconnect | PCIe Gen3 peer-to-peer support |
| Storage Options | Up to 8x 2.5″ SAS/SATA/NVMe drives, hot-swappable |
| RAID Support | Integrated RAID 0/1/10; optional RAID 5/6 with controller |
| Expansion Slots | Multiple PCIe 3.0 x16 slots for GPU and additional I/O |
| Networking | Dual 1GbE onboard; optional 10/25/100GbE via OCP or PCIe NIC |
| Power Supply | Redundant 3000W (or higher) Titanium Efficiency PSUs |
| Cooling | Intelligent fan zoning optimized for GPU-heavy configurations |
| System Management | BMC with IPMI 2.0, Redfish, KVM over IP, Inspur SmartManage |
| Dimensions | Approx. 448mm (W) × 176mm (H) × 900mm (D) |
| Certifications | CE, FCC, UL, CCC, RoHS |
