Description

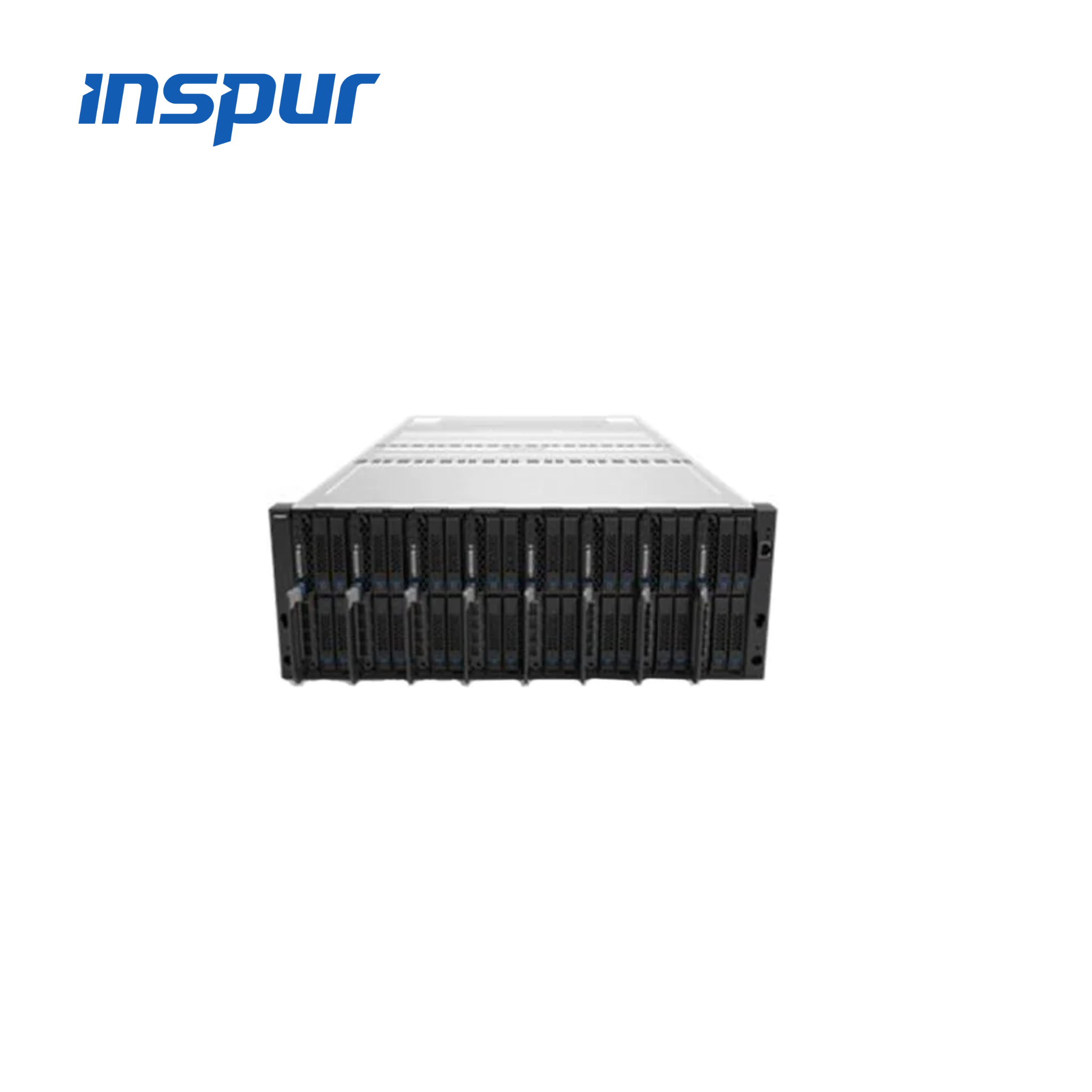

Inspur NS5488M5 Server Overview
The Inspur NS5488M5 is a cutting-edge 4U AI supercomputing server that supports up to 16x NVIDIA® Tesla V100/A100 SXM GPUs with NVLink high-speed interconnect, delivering breakthrough performance for deep learning training, natural language processing, AI inferencing, and scientific simulations.
Powered by dual Intel® Xeon® Scalable processors, this system supports up to 3TB of DDR4 memory, ultra-fast PCIe expansion, and NVLink 2.0, enabling lightning-fast GPU-to-GPU communication and high parallelism. Ideal for enterprise AI labs, cloud AI providers, and supercomputing environments.
Key Features
-
Supports up to 16x NVIDIA® SXM GPUs (e.g., A100/V100 with NVLink)
-
Dual Intel® Xeon® Scalable CPUs (up to 2nd Gen)
-
Built for deep learning model training, GPT-scale inferencing, and HPC workloads
-
NVLink 2.0 for superior GPU bandwidth and scalability
-
Optimized thermal design for stable operation under extreme GPU load
Inspur NS5488M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Dual Intel® Xeon® Scalable (1st/2nd Gen) CPUs |
| Chipset | Intel® C621 Series |
| Memory | Up to 3TB DDR4 ECC RDIMM/LRDIMM, 24x DIMM slots |
| GPU Support | Up to 16x NVIDIA® SXM2 (V100) or SXM4 (A100) GPUs with NVLink 2.0 |
| GPU Interconnect | NVIDIA® NVLink 2.0 high-speed GPU communication |
| Storage | Up to 8x 2.5″ NVMe/SATA/SAS hot-swappable drives |
| RAID Support | Integrated RAID 0/1/10; optional RAID 5/6 controller |
| Expansion Slots | Multiple PCIe 3.0 slots for I/O, NICs, and accelerators |
| Networking | Dual 1GbE onboard; optional 10/25/100GbE via OCP or PCIe NIC |
| Power Supply | Redundant 3x 3000W Titanium PSUs |
| Cooling System | High-efficiency GPU-optimized thermal zones with smart airflow control |
| Management | IPMI 2.0, Redfish, KVM over IP, Inspur SmartManage |
| Dimensions | Approx. 448mm (W) × 176mm (H) × 898mm (D) |
| Certifications | CE, FCC, UL, CCC, RoHS |
