Description

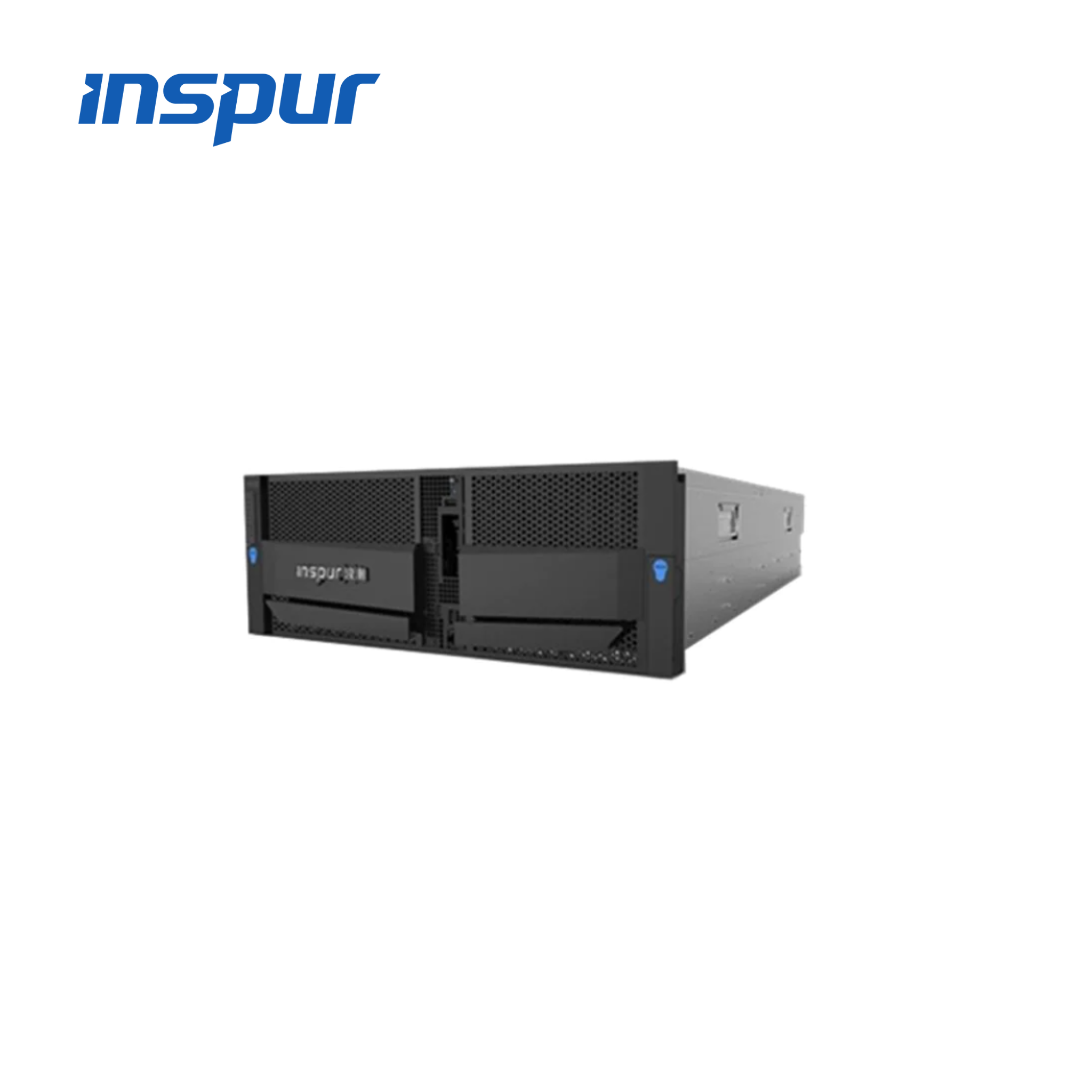

Inspur Yingxin NF5486M5 Server Overview
The Inspur Yingxin NF5486M5 is a high-capacity 4U rackmount server designed for data-intensive enterprise workloads, including software-defined storage, virtualization, and cloud infrastructure. With support for up to 24x 3.5” hot-swappable drives and dual Intel® Xeon® Scalable processors, this system delivers scalable compute power with massive local storage in a single chassis.
Engineered for high availability and efficient operation, the NF5486M5 features advanced cooling, redundant power supplies, and flexible networking expansion options—making it a top-tier choice for modern data centers and storage-heavy applications.
Key Features
-
Dual Intel® Xeon® Scalable processors (1st/2nd Gen)
-
Supports up to 24x 3.5″ hot-swappable SAS/SATA HDDs
-
Designed for cloud storage, big data, and hyper-converged infrastructure
-
Expandable memory and networking options for flexible deployments
-
Redundant power and fan modules for enterprise-grade reliability
Inspur Yingxin NF5486M5 Server Specifications
| Component | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Processor | Dual Intel® Xeon® Scalable CPUs (1st or 2nd Gen) |
| Chipset | Intel® C621 Series |
| Memory | Up to 2TB DDR4 ECC RDIMM/LRDIMM, 16–24 DIMM slots (varies by config) |
| Drive Bays | Up to 24x 3.5″ SAS/SATA hot-swappable HDDs/SSDs |
| NVMe Support | Optional NVMe U.2 SSD support (varies by backplane configuration) |
| RAID Options | Hardware RAID 0/1/5/6/10/50/60 via add-on controller |
| Expansion Slots | Up to 6x PCIe 3.0 x8/x16 slots for networking, HBA, or RAID |
| Networking | Dual 1GbE onboard; optional 10/25/40/100GbE via PCIe or OCP |
| Power Supply | Redundant 1600W–2000W Platinum/Titanium PSUs |
| Cooling System | Hot-swappable fans with zone-based intelligent cooling |
| Management | IPMI 2.0, Redfish, BMC with KVM over IP, Inspur SmartManage |
| Dimensions | Approx. 437mm (W) × 176mm (H) × 748mm (D) |
| Certifications | CE, FCC, UL, CCC, RoHS |
